• The jacks can be controlled in sets of 4, 8, 12 etc. to perform single or multi vehicle synchronised lifts
• The modular control system allows the operator to configure the jacks to suit the required operation

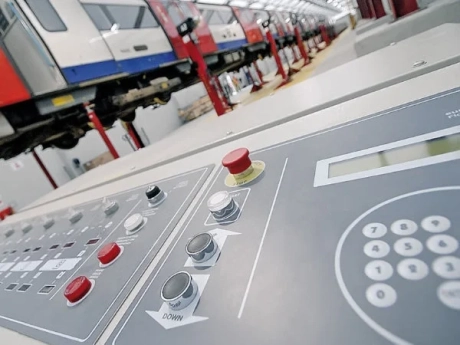

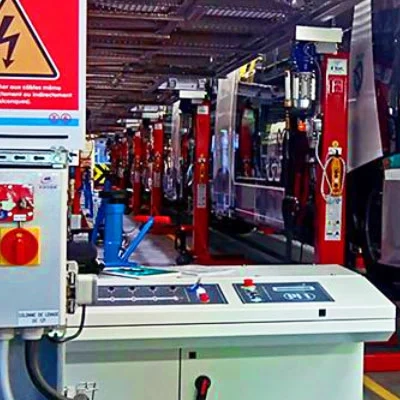

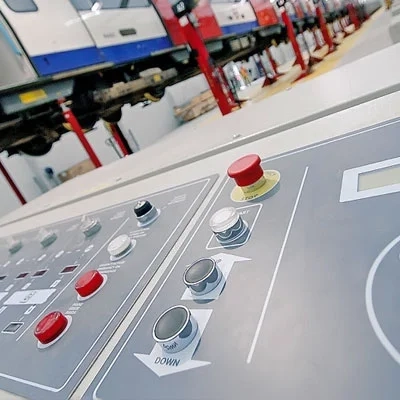

• For multi vehicle simultaneous lifts, the control can be either by means of a central control panel or a number of linked mobile controllers
• Proven reliability and long life are provided by the use of an irreversible trapezoidal screw / lifting nut arrangement and a highly robust jack structure
• The enclosed design of the jack column means that moving parts are guarded, minimising the potential for an acm3ident in operation
• Twin microprocessor controls with watchdog systems ensure the safe operation of the jacks. Safety features such as phase correction / detection and load nut wear detection also maximise operational safety

Jack height is monitored by special twin channel absolute encoder, ensuring accurate synchronization and no loss of synchronization due to power failure. Additionally, this eliminates the need for limit switches and a pulse counter, so improving the reliability of the equipment. Twin microprocessor controls with watchdog systems ensure the safe operation of the jacks. Safety features such as phase correction/detection and load nut wear detection also maximize operational safety.

Control units

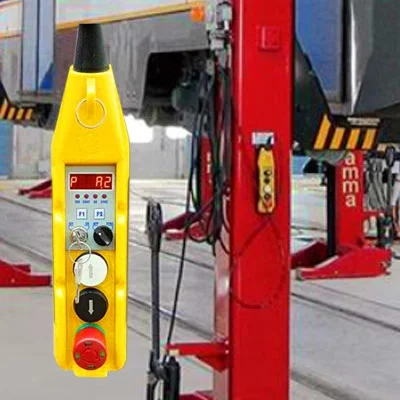

All lifting jacks are equipped with a control pendant that allows moving the jack locally. The pendant is used to make the "approach" phase (contact between jack and vehicle). Once the "approach" phase is completed, the lifting system, all jacks, can be moved synchronously from the main control unit or using the selected control pendant.

Mobile columns

Jack configuration can be customized to suit the customer’s application – lifting height, extending anvil, rail mounted, load cells for vehicle weighing etc. Max load from 5 tons up to 50 tons per jack.

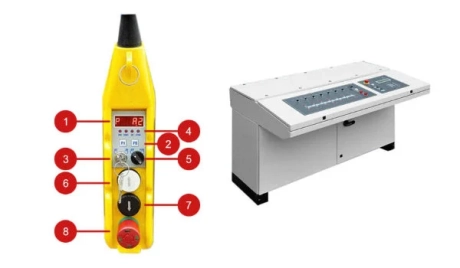

Multiple solutions are available for the control of the jacks. Each jack is equipped with an independent pendant control system, which can be joined by a dedicated workstation, which controls the entire system

1. 5 characters display
2. Function button
3. Key selector
4. Signaling led mode and contact
5. APP/SYNC selector
6. UP button
7. DOWN button
8. Emergency button

The jacks are fully compliant with all the relevant norms for vehicle lifting jacks and are manufactured under UNI EN ISO 9001 approved quality system, as well as being EC certified by an independent third pary, acredited by European Union

The design of Eurogamma lifting systems is always in compliance with the latest standards Compliance to: UNI EN 12100, UNI EN ISO 13857, EN 349, UNI EN ISO 13850, EN 1493, UNI EN ISO 9000, UNI EN ISO 9001, EN 60204-1, EN 60204-32, EN 61000-6-2, EN 61000-6-4, EN 13849-1
