CRAWLER CRANE MARCHETTI CW 25.35 HY

Full electric

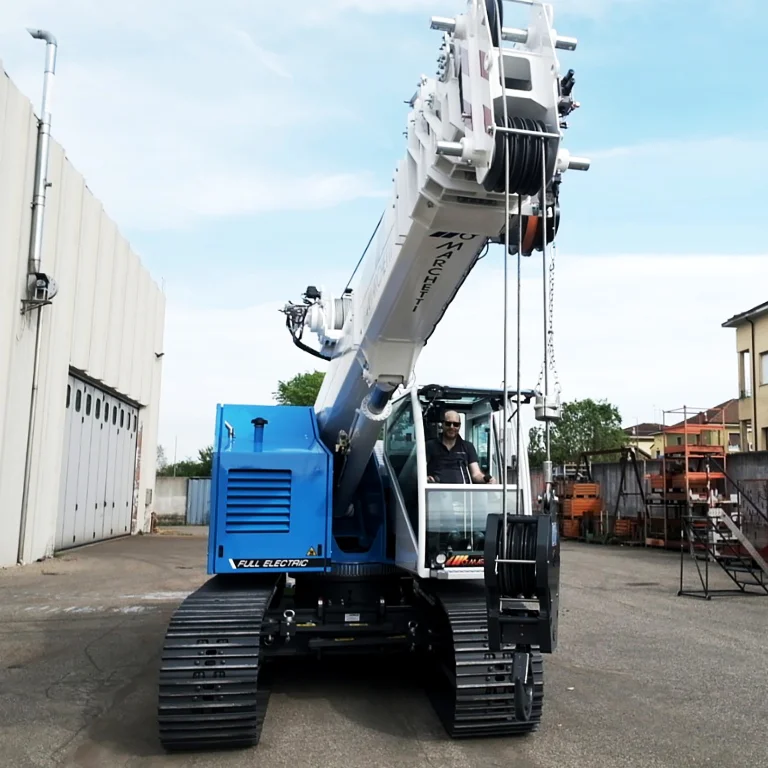

MARCHETTI CW 25.35 HY SHERPINA full electric, battery powered crawler crane. Equipped with 110 kW electric motor, 4 Lithium batteries with heating system and router for remote monitoring, total capacity 210 Ah. 400V on board charger, liquid cooled and CAN. Max 22 kW through standard plug 32A. Max load 25 tons. Max outreach 25 mt. Max height 27 mt, with JIB 35 mt. Rotation 360°. Winch 110 meters with 14 mm rope diameter, 3.3 tons counterweight. Crawler traction with two epicycloidal reducers with automatic spring brake and variable displacement hydraulic piston motors. Extensible crawler.

Key features

 DOWNLOAD
crawler-crane marchetti cw-25.35-hy photos
marchetti cw 25.35 hy full electric crawler-crane photo nr [1]
crawler-crane marchetti cw-25.35-hy photos
marchetti cw 25.35 hy full electric crawler-crane photo nr [2]
crawler-crane marchetti cw-25.35-hy photos
marchetti cw 25.35 hy full electric crawler-crane photo nr [3]
crawler-crane marchetti cw-25.35-hy photos
marchetti cw 25.35 hy full electric crawler-crane photo nr [4]
crawler-crane marchetti cw-25.35-hy photos
marchetti cw 25.35 hy full electric crawler-crane photo nr [5]

Price table

Taxes excluded, prices subject to change without notice. Last update: 2024-05-30

Marchetti CW-25.35-HY List Price 620,000 EUR
Discount -20%
Net Price 496,000 EUR
Marchetti CW-25.35-HY List Price 730,608 USD
Discount -20%
Net Price 584,486 USD
Marchetti CW-25.35-HY List Price 1,000,184 CAD
Discount -20%
Net Price 800,147 CAD
Marchetti CW-25.35-HY List Price 541,508 GBP
Discount -20%
Net Price 433,206 GBP
Marchetti CW-25.35-HY List Price 6,980,270 NOK
Discount -20%
Net Price 5,584,216 NOK
Marchetti CW-25.35-HY List Price 6,631,210 SEK
Discount -20%
Net Price 5,304,968 SEK
Marchetti CW-25.35-HY List Price 3,785,658 BRL
Discount -20%
Net Price 3,028,526 BRL

Delivery

worldwide delivery: available

delivery time: 90 days + shipping

payment terms: 30% at order - 70% before shipping

CRAWLER CRANE MARCHETTI CW 25.35 HY

Full electric

MARCHETTI CW 25.35 HY SHERPINA full electric, battery powered crawler crane. Equipped with 110 kW electric motor, 4 Lithium batteries with heating system and router for remote monitoring, total capacity 210 Ah. 400V on board charger, liquid cooled and CAN. Max 22 kW through standard plug 32A. Max load 25 tons. Max outreach 25 mt. Max height 27 mt, with JIB 35 mt. Rotation 360°. Winch 110 meters with 14 mm rope diameter, 3.3 tons counterweight. Crawler traction with two epicycloidal reducers with automatic spring brake and variable displacement hydraulic piston motors. Extensible crawler.

Key features

 DOWNLOAD

Price table

Taxes excluded, prices subject to change without notice. Last update: 2024-05-30

Marchetti CW-25.35-HY List Price 620,000 EUR
Discount -20%
Net Price 496,000 EUR
Marchetti CW-25.35-HY List Price 730,608 USD
Discount -20%
Net Price 584,486 USD
Marchetti CW-25.35-HY List Price 1,000,184 CAD
Discount -20%
Net Price 800,147 CAD
Marchetti CW-25.35-HY List Price 541,508 GBP
Discount -20%
Net Price 433,206 GBP
Marchetti CW-25.35-HY List Price 6,980,270 NOK
Discount -20%
Net Price 5,584,216 NOK
Marchetti CW-25.35-HY List Price 6,631,210 SEK
Discount -20%
Net Price 5,304,968 SEK
Marchetti CW-25.35-HY List Price 3,785,658 BRL
Discount -20%
Net Price 3,028,526 BRL

Page published: 2024-05-30

crawler-crane marchetti cw-25.35-hy photos
marchetti cw 25.35 hy full electric crawler-crane photo nr [1]
crawler-crane marchetti cw-25.35-hy photos
marchetti cw 25.35 hy full electric crawler-crane photo nr [2]
crawler-crane marchetti cw-25.35-hy photos
marchetti cw 25.35 hy full electric crawler-crane photo nr [3]
crawler-crane marchetti cw-25.35-hy photos
marchetti cw 25.35 hy full electric crawler-crane photo nr [4]
crawler-crane marchetti cw-25.35-hy photos
marchetti cw 25.35 hy full electric crawler-crane photo nr [5]

videos

crawler-crane marchetti cw-25.35-hy photos

Marchetti Sherpina 25 tons battery powered telescopic crawler crane, prelimany test at production plant in ... read more

e.u. guarantee

E.U. legislation provides a Free of charge, 2 years guarantee for private person, and 1 year for company (legal guarantee) on faulty goods, for all products we sell, this is important because it is a guarantee that the goods sold by us are covered by European protection. All goods we sell are invoiced by Silcom North UAB, a company registered in Vilnius, Lithuania. Every product we send is checked before departure, but in case there are any problems, the customer is required to notify us as soon as possible, and must not use the product until our withdrawal. In case the customer needs a repair, we are always available to assist him, even after the warranty expires.

why choose us

Because for 50 years we have been dealing with industrial supplies, we have seen technology evolve and needs change. Because we are used to working with customers from all over the world, because we believe that after-sales service is as important as the technical preparation of our staff. We like to listen to requests, and propose the best solutions.

features

crawler-crane marchetti cw-25.35cw-25.35-hy photos

Hook block

20 tons hook block with three pulleys

crawler-crane marchetti cw-25.35cw-25.35-hycw-45.32cw-55.40cw-65.40cw-70.42 photos

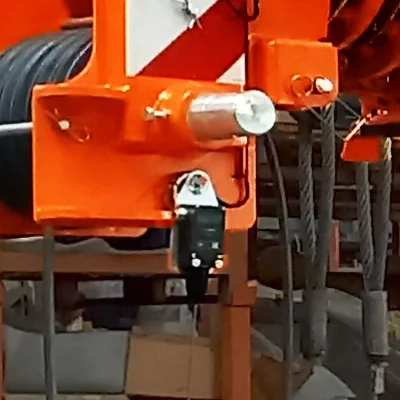

Limiting system

Lifting hoist limit switch, safety and pressure valves, emergency stop device and electronic moment limiter device

crawler-crane marchetti cw-25.35cw-25.35-hycw-45.32cw-55.40cw-65.40cw-70.42 photos

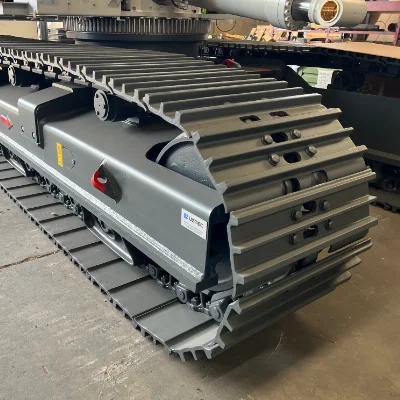

Undercarriage

torsion resistant frame with extendable crawler carriers and locking rods. Standard 800mm triple grouser shoes

crawler-crane marchetti cw-25.35cw-25.35-hy photos

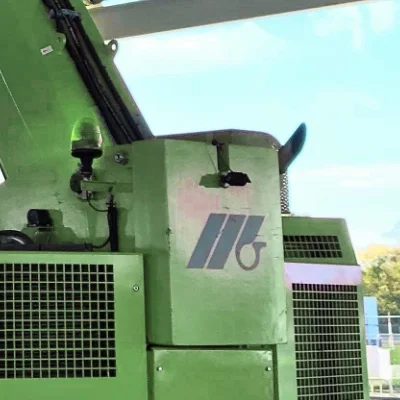

Counterweight

one cast iron element ballast, 3.3 tons, pinned to the superstructure

crawler-crane marchetti cw-25.35cw-25.35-hycw-45.32cw-55.40cw-65.40cw-70.42mg-70.4mg-60.3mtk-40mtk-60mtk-1006mtk-1005mtk-180 photos

Hoist gear

Piston hydraulic motor with epicyclical reducer and automatic multiple disk brake, grooved drum

crawler-crane marchetti cw-25.35cw-25.35-hycw-45.32cw-55.40cw-65.40cw-70.42 photos

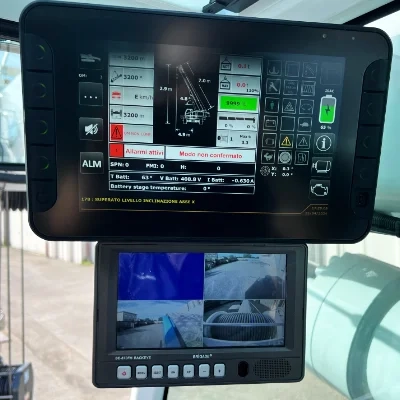

Board computer

Board computer with machine control and Electronic Limiting Device (LMI) operated in Can-Bus, crawler track monitoring

crawler-crane marchetti cw-25.35cw-25.35-hycw-45.32cw-55.40cw-65.40cw-70.42 photos

Safety devices

3-color warning signal light positioned on the front. Buzzer. Rotating light. Fire extinguisher.

crawler-crane marchetti cw-25.35cw-25.35-hycw-45.32cw-55.40cw-65.40cw-70.42mtk-40mtk-60mtk-1006mtk-1005mtk-180 photos

Boom elevation

differential hydraulic cylinder equipped with piloted load control valve

crawler-crane marchetti cw-25.35cw-25.35-hy photos

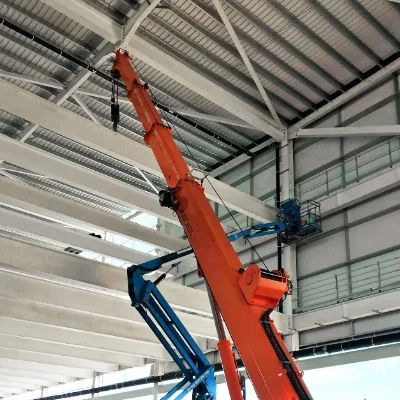

Boom

high resistance steel telescoping boom with one base section, one indipendent telescopic section, three syncronized telescopic sections, from 7 to 25.5 meters extension
